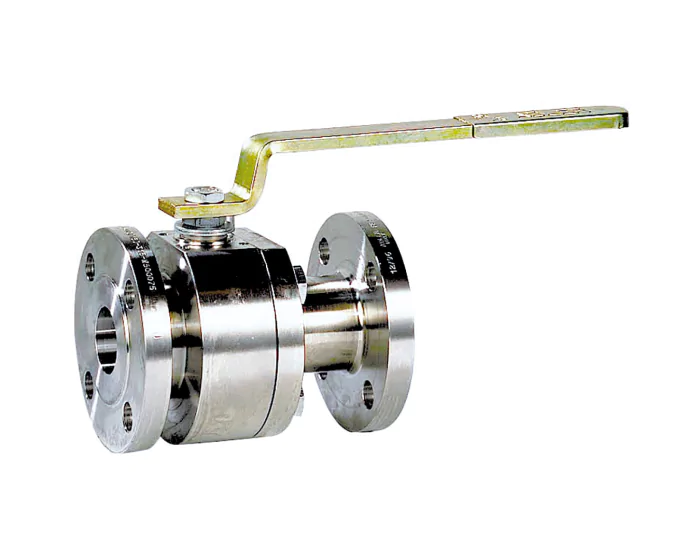

Stainless steel ball valve 767 2 piece body RF ANSI150 1/2''
€513.31
(excl. btw)
The Sferaco 767 series ball valve, 2-piece body model with PN20 Class 150 flanges, stainless steel, ISO 10497 fire safety, adler type FE2, motorizable, packing gland, double tightness for industries and compressed air.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
BS EN 12516-2 - ISO 14313 - ASME B16.34
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
SIL
SIL 3
EN face-to-face standard
EN 558 Series 3
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 3. ASME B16.10
Brand
ADLER
Tightness test standard
ANSI B16.34
Stem sealing material
15% Graphite filled PTFE gland packing
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class A
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316L
Square, star (mm)
MEP Ø10x6
ATEX compatible
Yes
Torque (Nm)
5
DN
DN15 - 1/2''
Face to Face (mm)
1470.0
Fluid
Hydrocarbons. gas
Body material
Stainless steel F316/F316L
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
20
Connections
Flanged #150 PN20
Seats
PTFE
Ball material
Stainless steel ASTM A479 316L
TS max (°C)
200
TS min (°C)
-28
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Carbon steel
Handle type
Yellow lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6817
Flanged #150 PN20 Stainless steel F316/F316L Full Split body DN15 - 1/2''
767015
S1007016
€513.31
(excl. btw)
add to cart
6818
Flanged #150 PN20 Stainless steel F316/F316L Full Split body DN20 - 3/4''
767020
S1007017
€611.49
(excl. btw)
add to cart
6819
Flanged #150 PN20 Stainless steel F316/F316L Full Split body DN25 - 1''
767025
S1007018
€785.40
(excl. btw)
add to cart
6820
Flanged #150 PN20 Stainless steel F316/F316L Full Split body DN40 - 1''1/2
767040
S1007019
€1,265.06
(excl. btw)
add to cart
6821
Flanged #150 PN20 Stainless steel F316/F316L Full Split body DN50 - 2''
767050
S1007020
€1,890.57
(excl. btw)
add to cart
6822
Flanged #150 PN20 Stainless steel F316/F316L Full Split body DN65 - 2''1/2
767065
S1007021
€2,776.96
(excl. btw)
add to cart
6823
Flanged #150 PN20 Stainless steel F316/F316L Full Split body DN80 - 3''
767080
S1007022
€2,875.13
(excl. btw)
add to cart
6824
Flanged #150 PN20 Stainless steel F316/F316L Full Split body DN100 - 4''
767100
S1007023
€4,659.11
(excl. btw)
add to cart
